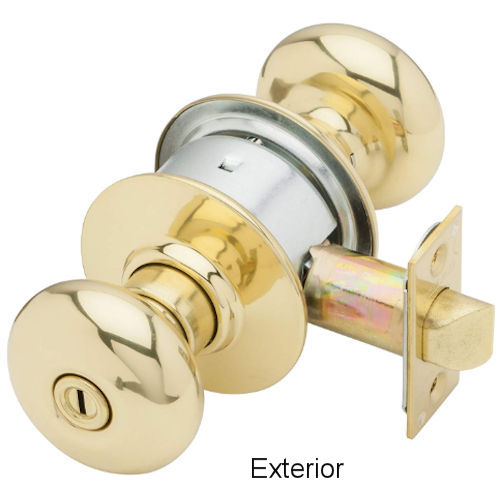

- Non-keyed lock with Bath/Bedroom push-button privacy lock
- Polished Brass Finish
- May be opened from outside with small screwdriver
- Turn inside knob or close door to release button
- Easily install into a 2-1/8" bore.
- May be installed on doors 1-3/8" - 1-7/8" thick
- Includes square corner 2-3/8" backset latch
- Includes square corner T-strike 1-1/8" x 2-3/4"
- Mounting hardware included
- Certification: ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2, UL Listed for 3-hour fire door
-
Click here to download installation instructions.
